SP Rescue
Universal drive with mechanical shut-off and quick emergency opening

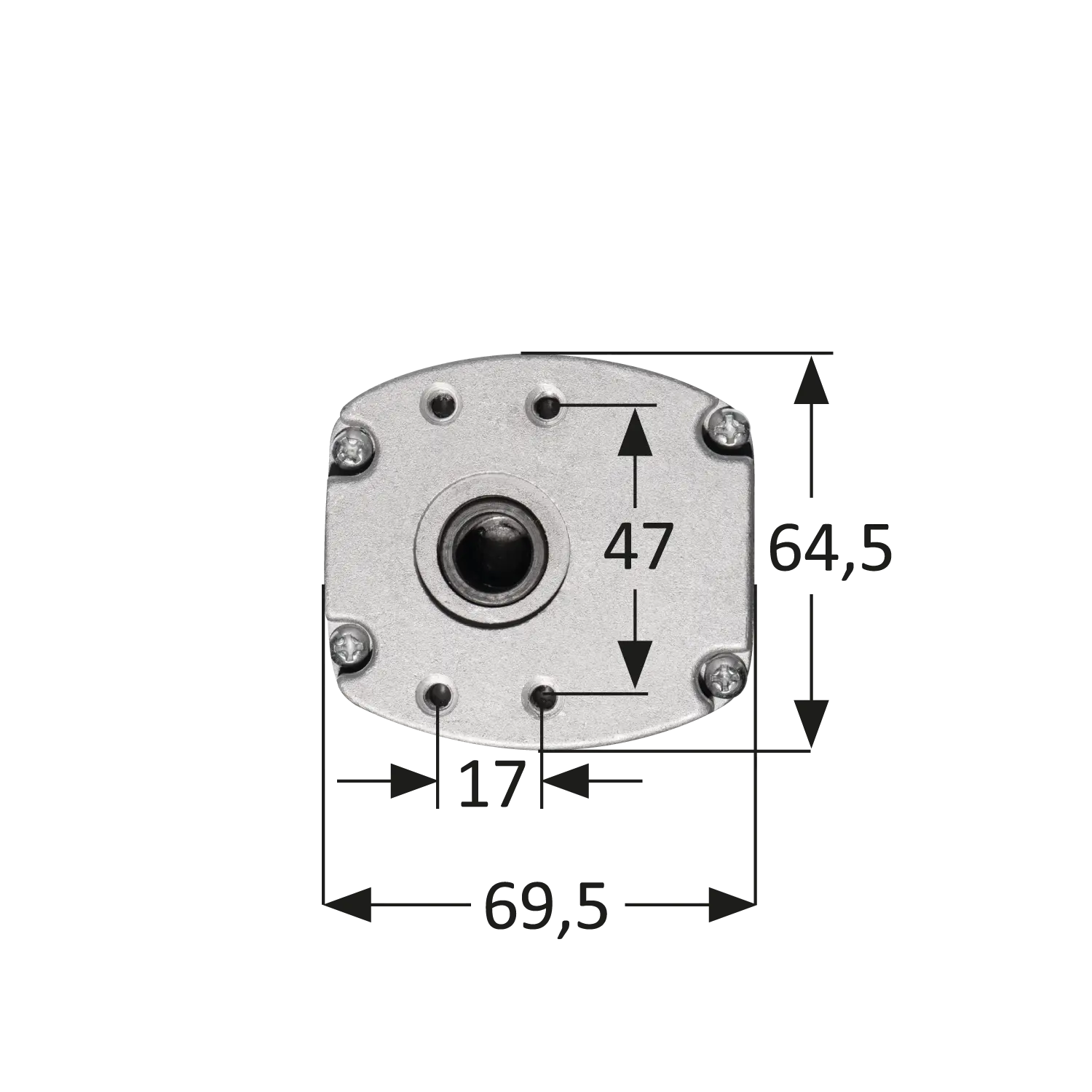

SP Rescue, GR 2
Product information
The SP Rescue opens the roller shutter curtain at the second escape and rescue route in an emergency with a single hand movement – within two seconds, even during a power failure. When manually released via the operating rod, a spring shaft lifts the curtain upward in seconds, clearing the way outside. After returning to normal operation, the end positions remain unchanged.
Parallel operation of multiple SP Rescue drives is not permitted!
If two or more SP Rescue drives are controlled simultaneously via a switch or timer, a separation relay must be used.
Available in BR 2 (from SW 50) up to 15 Nm. SP Rescue drives are supplied with SW 60 adapters as standard. Articulated bearing mount: 7 mm hexagon or 6 mm square.
PRODUCT BENEFITS
- Opens the Roller shutter at the second emergency and escape route in 1-2 seconds – also in case of power failure
- Intuitive handling with with only one handgrip
- End limits remain programmed after returning into the operating mode
- Easy assembly, requested opening width freely adjustable
- Maintenance-free, purely mechanical solution
Product videos
Emergency operating systems for electric roller shutters from SELVE
Roller shutter drive SELVE SP Rescue – developed to rescue lifes
The assembly of the emergency roller shutter drive SP Rescue
Increase of preload at the SP Rescue
Decrease of preload at the SP Rescue
Conversion of the spring shaft from right to left installation at the SP Rescue
Disassembly of drive and spring shaft at the SP Rescue
Downloads
Technical details
| SP 2/6-S-Rescue | SP 2/10-Rescue | SP 2/10-Rescue | SP 2/15-Rescue | ||
| Spring length mm | 500 | 500 | 700 | 920 | |
| Article no. | 359053 | 359063 | 359073 | 359083 | |
| Torque at rated load Nm | 6 | 10 | 10 | 15 | |
| Effective shutter weight (kg) at shutter height of 1.5 m | 8,5 | 9,5 | 13 | 18 | |
| Effective shutter weight (kg) at shutter height of 2.5 m | - | - | 12 | 17 | |
| Shaft type | SW 60 | SW 60 | SW 60 | SW 60 | |
| Pulling force N | 180 | 310 | 310 | 460 | |
| Rotation speed rpm | 16 | 17 | 17 | 17 | |
| Power rating W | 88 | 105 | 105 | 152 | |
| Current consumption A | 0,38 | 0,45 | 0,45 | 0,66 | |
| Voltage V | 230 | 230 | 230 | 230 | |
| Frequency Hz | 50 | 50 | 50 | 50 | |
| Time of operation min | 4 | 4 | 4 | 4 | |
| Protective system | IP44 | IP44 | IP44 | IP44 | |
| Test mark | CE | CE | CE | CE | |
| Limit switch range U | 22 | 22 | 22 | 22 | |
| Outer diameter mm | 45 | 45 | 45 | 45 | |
| Cable length m | 3 | 3 | 3 | 3 | |
| Length L 1 mm |  | 950 | 1090 | 1290 | 1510 |
| Length L 2 mm | 885 | 1025 | 1225 | 1445 | |
